Welding Reference Chart
Stick electrode codes and amps, rod drying, preheat, MIG wires and settings, shielding gases, TIG tungsten colours, weld symbols, lens shades and process numbers.
Download PDF (4 pages, A4)Shop welding
Typical starting settings - always check the electrode or wire maker's packet and run a test piece.

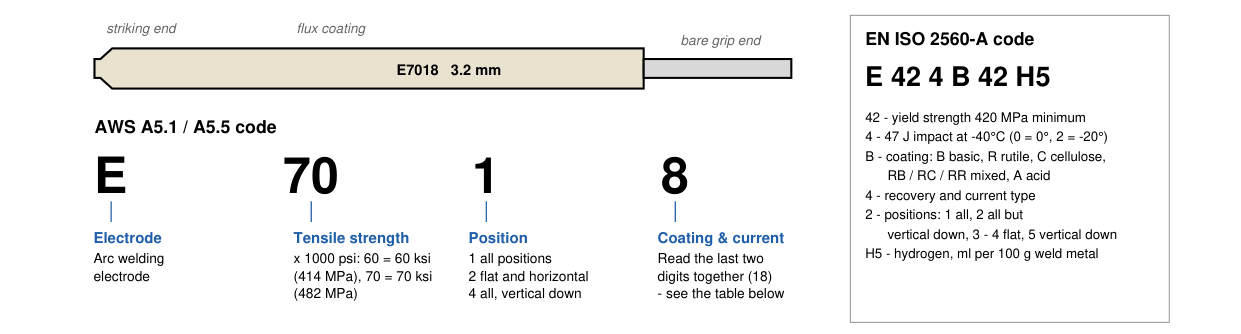

Stick (MMA) electrodes
Coating and current - the last two digits
| Last 2 digits | Coating | Current | Arc / use |
|---|---|---|---|
| 10 | High cellulose, sodium | DC+ | Deep digging arc - pipe root runs, dirty steel |
| 11 | High cellulose, potassium | AC or DC+ | As 10, runs on an AC set |
| 12 | Rutile, sodium | AC or DC- | Medium penetration, gap bridging, sheet |
| 13 | Rutile, potassium | AC or DC+/- | Soft arc, light penetration, neat finish |
| 14 | Rutile + iron powder | AC or DC+/- | Faster fill, easy slag |
| 15 | Low hydrogen, sodium | DC+ | Crack-resistant welds, DC only |
| 16 | Low hydrogen, potassium | AC or DC+ | Crack-resistant welds on AC |
| 18 | Low hydrogen + iron powder | AC or DC+ | Structural and pressure work - keep dry |
| 20 | High iron oxide | AC or DC+/- | Flat and horizontal fillets |
| 24 | Rutile + heavy iron powder | AC or DC+/- | Fast flat fillets, drag technique |
| 27 | Iron oxide + iron powder | AC or DC+/- | Deep flat fillets |
| 28 | Low hydrogen + iron powder | AC or DC+ | Fast low-hydrogen flat fillets |
Common electrodes
| Electrode | Type | Current | Positions | Use it for | ISO 2560-A (approx.) |
|---|---|---|---|---|---|
| E6010 | Cellulose | DC+ | All | Pipe root runs, rusty or painted steel | E 38 3 C 21 |
| E6011 | Cellulose | AC / DC+ | All | General repair on AC sets, dirty steel | E 38 2 C 11 |
| E6013 | Rutile | AC / DC+/- | All | General mild steel, sheet, gates, light fabrication | E 42 0 RC 11 |
| E7014 | Rutile + iron powder | AC / DC+/- | All | Faster fill on mild steel, good finish | E 42 0 RR 32 |
| E7016 | Low hydrogen | AC / DC+ | All | Structural steel on AC, crack-sensitive joints | E 42 4 B 12 H10 |
| E7018 | Low hydrogen | AC / DC+ | All | Structural, pressure, high-strength and thick steel | E 42 4 B 42 H5 |
| E7024 | Iron powder rutile | AC / DC+/- | Flat, horiz. | Fast large fillets in the flat | E 42 0 RR 73 |
| E308L-16 | Stainless (rutile) | AC / DC+ | All | 304 / 304L stainless | E 19 9 L R 12 |
| E316L-16 | Stainless (rutile) | AC / DC+ | All | 316 / 316L stainless (acid, marine) | E 19 12 3 L R 12 |
| E309L-16 | Stainless (rutile) | AC / DC+ | All | Stainless to mild steel, buffer layers | E 23 12 L R 32 |
| E312-16 | Stainless 29/9 | AC / DC+ | All | Unknown or hard-to-weld steels, tool steel repair | E 29 9 R 12 |
| ENi-CI | Nickel (99%) | AC / DC+ | All | Cast iron repair - machinable | E C Ni-CI 3 |
| ENiFe-CI | Nickel-iron (55%) | AC / DC+ | All | Cast iron to steel, stronger cast iron joints | E C NiFe-CI 3 |
| Hardfacing | Various | AC / DC+ | Flat | Wear surfaces - buckets, teeth, crusher parts | EN 14700 |
Amps by rod diameter (flat position - drop 10 - 15% vertical and overhead)
| Rod dia mm | Inch | E6013 | E7018 | E6010 / 6011 | Stainless | Plate mm |
|---|---|---|---|---|---|---|
| 1.6 | 1/16" | 25 - 45 | - | - | 25 - 45 | 1 - 2 |
| 2.0 | 5/64" | 40 - 70 | 50 - 75 | - | 35 - 55 | 1.5 - 3 |
| 2.5 | 3/32" | 60 - 95 | 70 - 100 | 50 - 85 | 50 - 75 | 2 - 5 |
| 3.2 | 1/8" | 90 - 130 | 100 - 140 | 75 - 125 | 75 - 110 | 3 - 8 |
| 4.0 | 5/32" | 130 - 180 | 140 - 190 | 110 - 170 | 100 - 150 | 5 - 12 |
| 5.0 | 3/16" | 180 - 240 | 190 - 260 | 140 - 215 | 140 - 190 | 8 + |
| 6.0 | 1/4" | 240 - 320 | 250 - 330 | - | - | 12 + |
Drying and storing electrodes
| Rod type | Re-dry | Hold / quiver | Notes |
|---|---|---|---|
| Low hydrogen (7016, 7018) | 300 - 350°C, 1 - 2 h | 100 - 150°C | Once out of the oven or a sealed tin, use within about 4 h |
| Rutile (6013, 7014, 7024) | 70 - 100°C, 1 h, only if damp | Dry store | Damp rods give porosity and a stubborn arc |
| Cellulose (6010, 6011) | Do not re-dry | Dry store | The coating needs its moisture to work |
| Stainless | 250 - 300°C, 1 - 2 h | 100 - 150°C | Porosity and cracking if damp |
| Cast iron (nickel) | 100 - 150°C, 1 h | Dry store |
Preheat guide (CE = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15)
| Material | Typical CE | Preheat / interpass | Rods / notes |
|---|---|---|---|
| Mild steel (S275, A36) | 0.35 - 0.40 | None under 25 mm; 50 - 100°C thicker | E6013 / E7018, ER70S-6 |
| Structural S355 | 0.40 - 0.47 | 50 - 100°C over 20 mm | Low hydrogen |
| EN8 / 1045 medium carbon | 0.55 - 0.65 | 150 - 250°C | E7018, slow cool |
| EN19 / 4140 CrMo | 0.85 - 0.95 | 250 - 350°C | Low hydrogen or E312, slow cool, stress relieve |
| EN24 / 4340 NiCrMo | 0.85 - 1.0 | 300 - 350°C | As EN19 - check the heat treatment |
| Cast iron | - | 250 - 400°C, or cold | Nickel rods; cold: short runs, peen, let cool |
| Manganese steel (Hadfield) | - | None - keep under 250°C | Austenitic Mn or 29/9 rods, short runs |
| Stainless 304 / 316 | - | None - interpass under 150°C | Keep heat input low |
| Aluminium | - | 100 - 150°C on thick sections | Not over 200°C on heat-treated alloys |
MIG / MAG
Wires
| Wire (AWS) | EN ISO | Gas | Use it for |
|---|---|---|---|
| ER70S-6 | G3Si1 / G 42 4 M21 3Si1 (SG2) | Ar + 15-20% CO2, or CO2 | Mild and structural steel - the everyday wire |
| ER70S-3 | G2Si1 (SG1) | Ar + CO2 | Clean mild steel |
| E71T-1 | T 46 2 P M 1 | Ar + CO2 or CO2 | Gas-shielded flux-cored - all-position structural |
| E71T-11 / E71T-GS | T 42 Z Z N | None (gasless) | Outdoor and site work on thin mild steel (DC-) |
| ER308LSi | G 19 9 L Si | Ar + 2% CO2 or O2 | 304 stainless |
| ER316LSi | G 19 12 3 L Si | Ar + 2% CO2 or O2 | 316 stainless |
| ER309LSi | G 23 12 L Si | Ar + 2% CO2 | Stainless to mild steel |
| ER4043 | S Al 4043 (AlSi5) | Argon | Aluminium castings, 6xxx alloys, crack-resistant |
| ER5356 | S Al 5356 (AlMg5) | Argon | 5xxx and marine aluminium, anodises better |
| CuSi3 | S Cu 6560 | Argon | MIG brazing galvanised and coated sheet |
Settings for mild steel, short arc, Ar + CO2, flat position
| Plate mm | Wire mm | Amps | Volts | Wire m/min | Notes |
|---|---|---|---|---|---|
| 0.8 - 1.0 | 0.6 - 0.8 | 40 - 60 | 15 - 16 | 2.5 - 3.5 | Tack and stitch to stop burn-through |
| 1.5 | 0.8 | 60 - 80 | 16 - 17 | 3.5 - 4.5 | |
| 2.0 | 0.8 | 80 - 110 | 17 - 18 | 4.5 - 6 | |
| 3.0 | 0.8 - 1.0 | 110 - 140 | 18 - 19 | 5 - 7 | |
| 4.0 | 1.0 | 140 - 170 | 19 - 21 | 5.5 - 7 | |
| 5.0 | 1.0 | 160 - 190 | 20 - 22 | 6.5 - 8 | |
| 6.0 | 1.0 - 1.2 | 180 - 230 | 22 - 24 | 7 - 9 | Bevel over 6 mm for full penetration |
| 8.0 | 1.2 | 230 - 280 | 25 - 28 | 6 - 8 | Multi-pass; spray transfer needs Ar-rich gas |
| 10 + | 1.2 | 250 - 320 | 27 - 31 | 7 - 10 | Multi-pass, flat or horizontal |
Shielding gases
| Shielding gas | Process | Use it for |
|---|---|---|
| Argon + 15-20% CO2 (M21) | MAG | General mild steel - good all-rounder, low spatter |
| Argon + 5-8% CO2 (M20) | MAG | Thin steel and spray transfer, smooth finish |
| 100% CO2 (C1) | MAG | Deep penetration on mild steel, cheap - more spatter |
| Argon + 2% CO2 or O2 (M12 / M13) | MAG | Stainless steel |
| 100% Argon (I1) | TIG, MIG | All TIG welding; MIG on aluminium and bronze |
| Argon + 25-70% Helium (I3) | TIG, MIG | Thick aluminium and copper - hotter arc |
| Flow rate | MIG 12 - 18 L/min, TIG 6 - 12 L/min; more outdoors or with a larger cup |
TIG
Tungsten electrodes (ISO 6848 colour codes)
| Colour | ISO 6848 | Oxide | Current | Notes |
|---|---|---|---|---|
| WP | Pure tungsten | AC | Balls easily - older AC aluminium work | |
| WT20 | 2% thorium | DC | Long-lasting DC steel work - radioactive grinding dust | |
| WC20 | 2% cerium | AC / DC | Good low-amp starts, thin sheet | |
| WL10 | 1% lanthanum | AC / DC | ||
| WL15 | 1.5% lanthanum | AC / DC | Good all-rounder, thoriated replacement | |
| WL20 | 2% lanthanum | AC / DC | Best all-rounder - steel, stainless and aluminium | |
| WZ3 | 0.3% zirconium | AC | Aluminium - holds a clean ball | |
| WZ8 | 0.8% zirconium | AC | Aluminium, higher current | |
| E3 | Rare-earth mix | AC / DC | Long life, easy starts on everything |

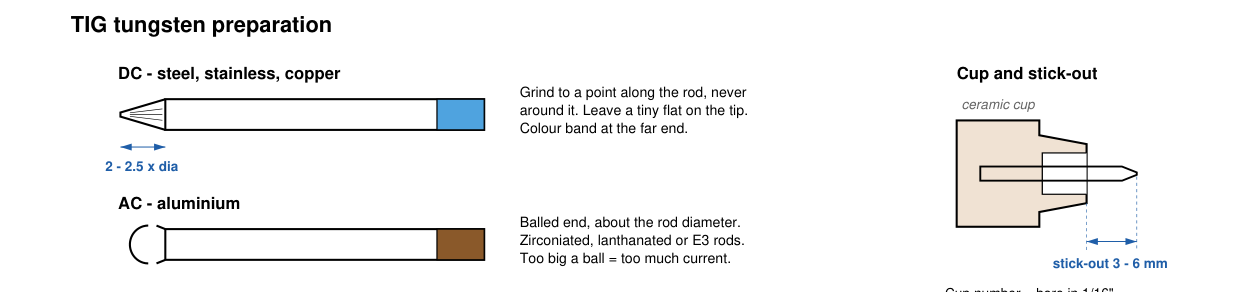

Current and cup size
| Tungsten mm | Inch | DC- amps | AC amps | Cup size | Filler mm |
|---|---|---|---|---|---|
| 1.0 | 0.040" | 15 - 80 | 15 - 60 | #4 - #5 | 1.0 - 1.6 |
| 1.6 | 1/16" | 70 - 150 | 60 - 120 | #5 - #6 | 1.6 - 2.4 |
| 2.4 | 3/32" | 150 - 250 | 100 - 180 | #6 - #8 | 2.4 - 3.2 |
| 3.2 | 1/8" | 250 - 400 | 160 - 250 | #8 - #10 | 3.2 - 4.0 |
Filler rods
| Filler rod | Use it for |
|---|---|
| ER70S-2 / ER70S-6 | Mild steel (70S-2 has extra deoxidisers - better on dirty steel) |
| ER308L / ER316L | 304 / 316 stainless |
| ER309L | Stainless to mild steel |
| ER4043 / ER5356 | Aluminium - as for MIG wire |
| ERCuSi-A (silicon bronze) | Bronze, copper, galvanised steel, cast iron brazing |
| ER80S-B2 (CrMo) | 1.25 Cr 0.5 Mo boiler and pressure steels |

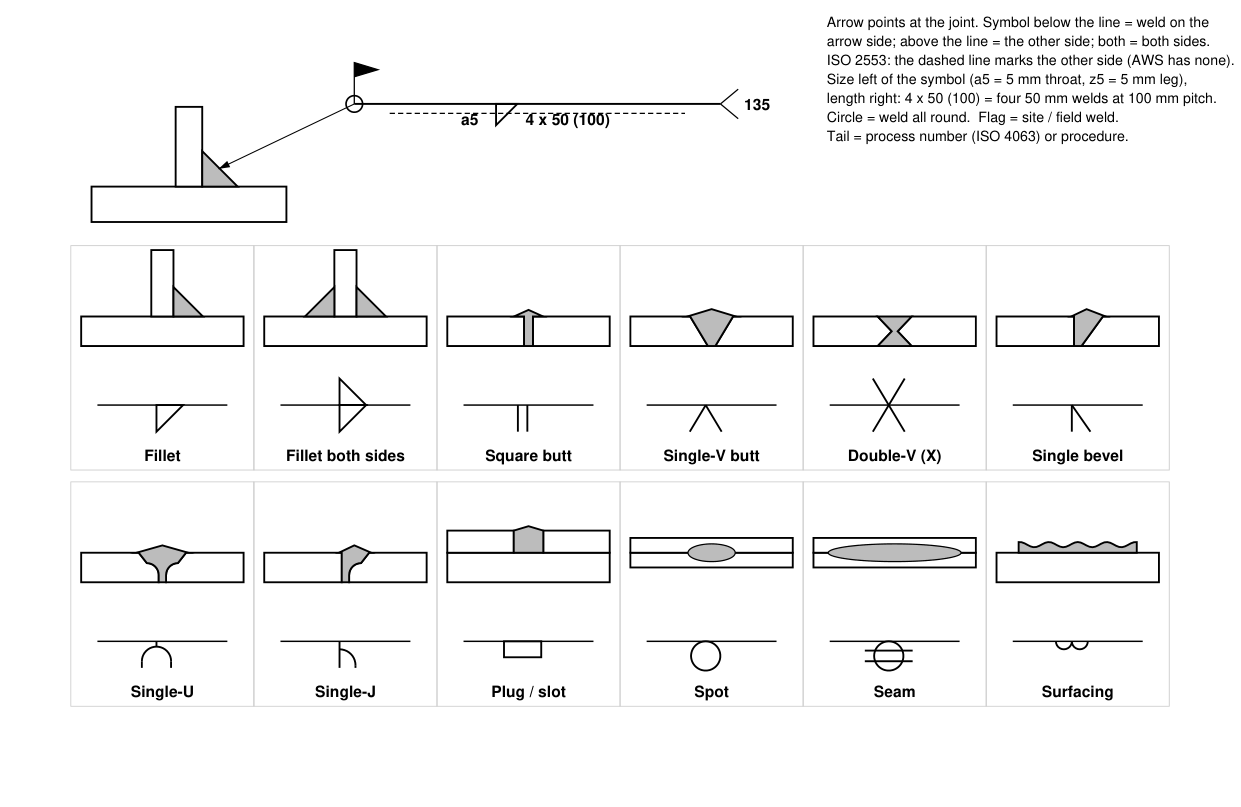

Weld symbols, lens shades and process numbers
Lens shade (EN 169 / AWS F2.2)
| Process | Current | Lens shade |
|---|---|---|
| MMA (stick) | Under 60 A | 7 - 9 |
| 60 - 160 A | 10 - 11 | |
| 160 - 250 A | 11 - 12 | |
| 250 - 550 A | 13 - 14 | |
| MIG / MAG | Under 60 A | 7 - 10 |
| 60 - 160 A | 10 - 11 | |
| 160 - 250 A | 11 - 12 | |
| 250 - 500 A | 12 - 14 | |
| TIG | Under 50 A | 8 - 10 |
| 50 - 150 A | 10 - 12 | |
| 150 - 500 A | 12 - 14 | |
| Plasma cutting | Under 300 A | 8 - 9 |
| 300 - 400 A | 9 - 12 | |
| Oxy-fuel cutting | Plate to 25 mm | 3 - 4 |
| Plate 25 - 150 mm | 4 - 5 | |
| Gas welding / brazing | 4 - 6 | |
| Grinding / helpers | Clear or shade 2 - 3 |
Process numbers (ISO 4063)
| ISO 4063 | Process |
|---|---|
| 111 | Manual metal arc (MMA, stick) |
| 114 | Self-shielded flux-cored (gasless) |
| 121 | Submerged arc (SAW) |
| 131 | MIG - inert gas |
| 135 | MAG - active gas, solid wire |
| 136 | MAG - flux-cored wire |
| 141 | TIG |
| 15 | Plasma arc welding |
| 311 | Oxy-acetylene welding |
| 912 | Flame brazing |
